Crossbow 4x32 scope with Illuminated reticle

Crossbow 4x32 scope with Illuminated reticle, excellent price/performance ratio, five reticles on top of each other, 10-20, 30, 40, 50 m.

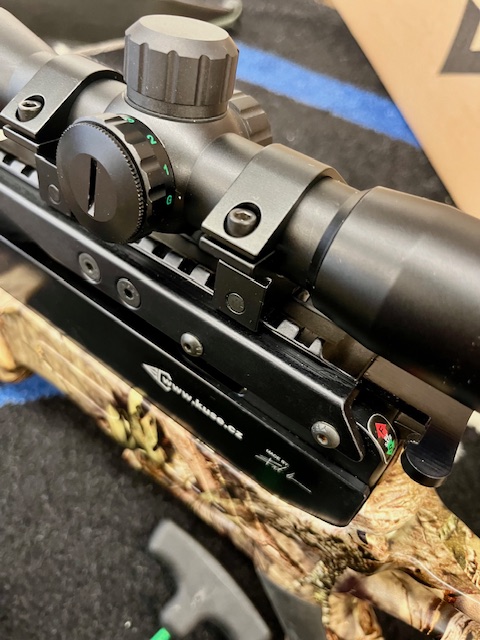

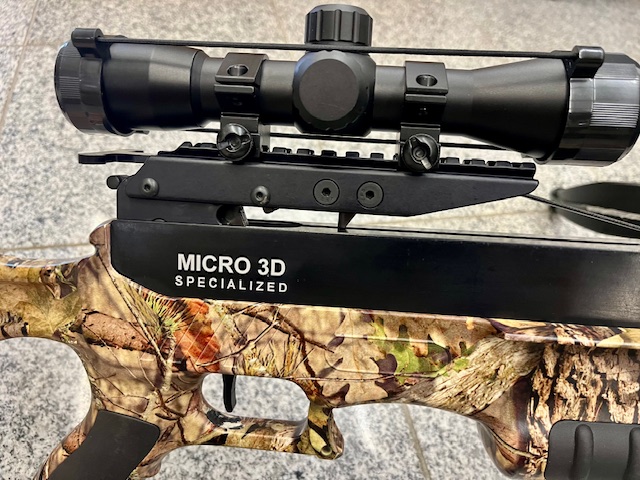

Fitting the scope and its adjustment: Insert the scope/rifle scope into the upper mounting rail above the trigger mechanism so that the axes of the mounting rings fit properly into the notches in the rail, attach the counter piece and tighten with a wide screwdriver, the distance of the eye from the eyepiece of the rifle scope is about 6-8 cm, do not put the eye tightly on the eyepiece, there is a risk of hitting the eyebrow. Always mount the rifle scope so that the entire field of view is displayed and the horizontal axis of the scope is parallel to the crossbow arms.  There are stops on the optic/scope/rifle scope under the screw caps in the center of the scope on the right and top for both side and elevation adjustment/correction. Remove the caps and you will see the adjusters, if the crossbow shoots e.g. downwards click the top adjuster on the rifle scope in the direction of the UP arrow, if it shoots e.g. right click the side adjuster on the rifle scope in the direction of the L arrow. Always replace the slide caps after adjustment, they protect the click mechanism and the slide from mechanical damage, dirt and moisture. On the left side of some rifle scopes is the illumination control, its intensity and color can be adjusted by turning it, see the digits. Remember to always turn off the illuminator, otherwise you will drain the battery, type: CR 2032, the battery is changed by holding the lower part of the ring with the numbers and counterclockwise release the upper grooved ring, underneath it.
